Machinery manufacturing company from China.
Choose Us, Trust Us!
The quilting width varies from the minimum value to 3400mm, and we can customize any pattern as you want,and any pattern can be created simply by replacing the pattern roller.
Avoid the trouble of needles and threads of traditional sewing through the use of unique no-thread quilting technique.
THE MAIN TECHNICAL PARAMETERS FOR OUR ULTRASONIC QUILTING MACHINE:
1 | Quantity of Ultrasonic generators | 17sets |
2 | Generator power | 20K |
3 | Operating frequency | 50HZ |
4 | Work efficiency | 100-600m/h |
5 | Gas source | 0.6MPA |
6 | Pattern roller | Effective width 2500mm |
7 | Max material width | 2500mm |
8 | Pattern roller size | 175mm*2600mm |
9 | Voltage | 380V, 50HZ |
10 | Winding motor + inverter | 1.5KW |
11 | Main motor + frequency converter | 2.2KW |
12 | Unwinding device | 3 sets |
13 | Horn size | 153*20mm |
14 | With cross horn | |

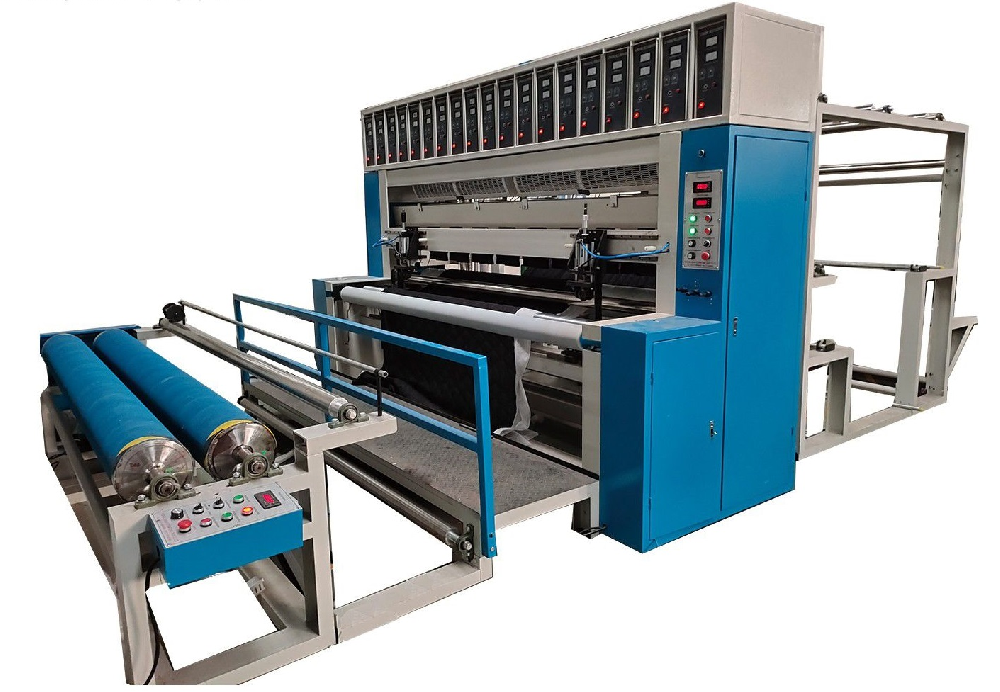

DESCRIPTION FOR OUR ULTRASONIC QUILTING MACHINE:
The ultrasonic quilting machine use ultrasound technology to complete no-needle, no-thread quilting operations. It can bond and emboss various chemical fiber fabrics, non-woven fabrics, gush glue cotton,fiber ,polyester fabric and artificial leather.
The machine is easy to operate and patterns come out clear and beautiful. The bonding is solid and without using needles,The fabric will not be easily deformed., Production efficiency is significantly increased.
According to customer demands, the pattern roller can also be customized . It is an ideal equipment for the production of bed covers, bedspreads, pillowcases, quilt covers, quilt, sofas, car mats, and bags ,mattress and garments etc
APPLICATION SAMPLES:
