THE MAIN TECHNICAL PARAMETERS:
1 | Quantity of Ultrasonic generators | 17sets |
2 | Generator power | 20K |
3 | Operating frequency | 50HZ |
4 | Work efficiency | 100-600m/h |
5 | Gas source | 0.6MPA |
6 | Pattern roller | Effective width 2500mm |
7 | Max material width | 2500mm |
8 | Pattern roller size | 195mm*2600mm |
9 | Voltage | 380V, 50HZ |
11 | Total motor power | 12KW |
12 | Unwinding device | 3 sets |
13 | Horn size | 153*20mm |
14 | Horizontal cutting device | Ultrasonic cross cutting |
15 | Edge cutting device | Ultrasonic edge cutting |
FEATURES:
The machine has simple operation, convenient maintenance and high production efficiency. Only by changing the pattern roller, various pattern-shaped composite fabrics can be made. Compared with various types of composite machines with similar functions, it has the advantages of low production cost, high production efficiency, firm adhesion, and no needle holes. It is an ideal equipment for producing bed sheets, light bed quilts, clothing fabrics, and decorative soft bags.
This machine is equipped with ultrasonic edge trimming, embossing and cross-cutting devices, which can perform ultrasonic edge trimming, edge banding, embossing and ultrasonic cross-cutting into slices and forming at one time.

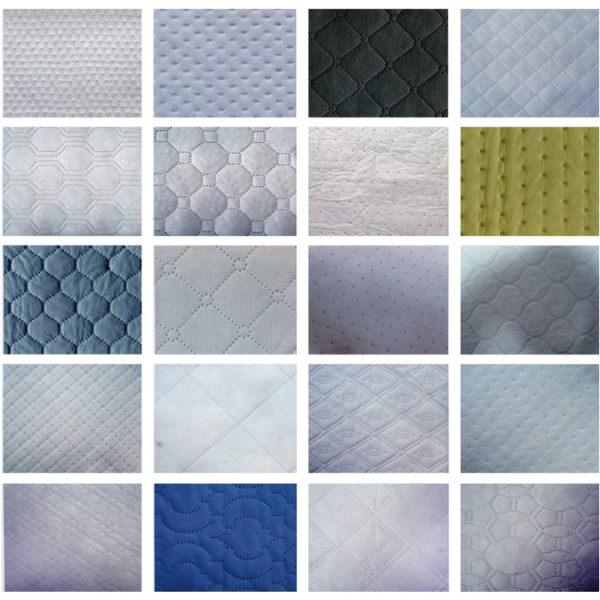

APPLICATION PHOTOS:
